Video : Subtitles and Closed Captions

Some definitions

closed captions describe all relevant audio present in the video (fire, rain, birds, gun fights, etc.).
subtitles are only for spoken words.
The accessibility features of TV programs often propose both options for people with hearing deficiencies.
"WebVTT: The Web Video Text Tracks Format" specification, a format used for defining files that will contain text for captions and subtitles, and much more.

<video src="brave.webm">
<track kind=subtitles src=brave.en.vtt
srclang=en
label="English">
<track kind=captions src=brave.en.hoh.vtt
srclang=en
label="English for the Hard of Hearing">
<track kind=subtitles src=brave.fr.vtt
srclang=fr
lang=fr
label="Français">
<track kind=subtitles src=brave.de.vtt
srclang=de
lang=de
label="Deutsch">
</video>

Audio element

1. The <audio> element is useful for embedding an audio player into a Web page. It is dedicated forstreamed audio.

2. this article about 10 enhanced HTML5 audio players

<html lang="en"
<body>
<audio controls="controls"> <source src="https://dl.dropboxusercontent.com/u/1631516/horse.ogg"
type="audio/ogg" /> <source src="https://dl.dropboxusercontent.com/u/1631516/horse.mp3"
type="audio/mp3" />
Your browser does not support the audio element.
Download the audio/video in
<a href=”https://dl.dropboxusercontent.com/u/1631516/horse.ogg”>OGG</a>
or <a href=”https://dl.dropboxusercontent.com/u/1631516/horse.mp3”>MP3</a>
format.
</audio>
</body>
</html>

Wednesday, June 10, 2015

Name	Description
src	Source of the video.
width and height	Size of the video. If unspecified, the default width and height of the video will be used. If you specify one dimension but not the other, the browser will adjust the size of the unspecified dimension to preserve the aspect ratio of the video.
controls	If this boolean attribute is present, the browser displays its own controls for video playback and volume.
poster	This attribute allows you to specify an image that the browser will use while video is being downloaded, or until the user starts playing the video. If this attribute is not specified, the first frame of the video will be used instead.
autoplay	This attribute asks the browser to start playing the video automatically as soon as the page is ready.
preload	The preload attribute is used when autoplay is not used. It tells the browser what to do before a user plays a video. This attribute is a hint, the browser may ignore it. While autoplay and preload are mutually exclusive, if both are present, then preload is ignored. Possible values: none: do nothing. This saves bandwidth, no video will be downloaded in background before a user or a call to the play() method starts playing the video. metadata: download metadata, such as length of the video or its format. auto (default value): the browser will decide. This will depend on the implementation, and on the kind of connection: wifi, 3G, data roaming etc.
loop	Another boolean attribute that indicates to play the video in loop mode (and it starts again when finished).

Sunday, June 7, 2015

NEW WAY TO DOWNLOAD A FILE USING AN ARBITRARY NAME: THE DOWNLOADATTRIBUTE

HTML5 proposes using a new attribute named download to download resources rather than navigating to them. The example below shows how to trigger the download of an image by the browser (instead of rendering it, which is the default behavior) with a name different from the name of the resource.

<a href="/asset-v1:W3Cx+W3C-HTML5+2015T3+type@asset+block/normal.gif" download="MichelBuffa.gif">
download a picture of Michel Buffa
</a>

WARNING: since 2015, and for security reasons, the image should be located on the same domain as the HTML page that contains the link (use a relative URL works well, for example, but linking a page on another domain will not work, it willkeep its original name).

The time element

INTRODUCTION

The <time> element is useful for marking a time or a duration in a document.

It provides both a human readable part (the part between <time> and </time>) and a machine readable part contained within a datetime attribute. Dates are expressed as YYYY-MM-DD.

This machine readable part adds semantics that can be used by search engines for indexing, by browsers or by browser extensions, or by JavaScript code. Useful scenarios include generating alerts for birthdays, automatically adding dates or events that contain <time> elements in a calendar, etc.

THE DATETIME ATTRIBUTE

The datetime attribute can be used for indicating a date/time or a duration.

DURATION VALUES

Duration values use the prefix “P” for “period” as in <time datetime="P4D"> (period = four days).

Using a “T” after the “P” marker allows you to indicate a more accurate duration time: <time datetime="PT4H 6M 12.55S"> is a duration of 4 hours, 6 minutes and 12.55 seconds.

Details and Summary elements

These elements have been introduced for displaying a foldable zone in an HTML document.

In the screenshot below, taken from the W3C specification page, the text next to the horizontal arrow is a<summary> element, and the text displayed when we click on the summary part, is the <details> element. This is a sort of "accordion" with foldable content.

<!DOCTYPE html>
<html>
<body>
<details>
<summary>
How to beat the boss...spoiler alert !
</summary>
<p> Just aim to the red spots near his eyes</p>
<p>Keep shooting at these spots until the eyes open, then hit
quickly both eyes with your laser beam.</p>
</details>
</body>
</html>

Saturday, June 6, 2015

Tools

1. jsbin.com

2. Google HTML5 Outliner

3. http://jsbin.com/binuxo/1/edit - This example is a simple document, with a hyperlink that, once clicked, displays the table of contents in an <aside> element in the main <section>

4. the W3C conformance checker

5. Polyfills:

http://caniuse.com/, http://html5please.com/

http://modernizr.com/

6. the Google page about rich snippets and structured data

7. Live Microdata Web site

8. Microdata generators

http://miageprojet2.unice.fr/Intranet_de_Michel_Buffa/Outils_de_validation_HTML5%2F%2Fextensions_de_navigateurs

9. http://www.w3.org/developers/tools

10. http://www.w3.org/2009/cheatsheet/

11. Validation tools

W3C VALIDATOR

The W3C validator checks the markup validity of Web documents in HTML, XHTML, SMIL, MathML, etc.

CSS VALIDATOR

The CSS validator checks Cascading Style Sheets (CSS) and (X)HTML documents that use CSS stylesheets.

UNICORN

Unicorn is W3C's unified validator, which helps people improve the quality of their Web pages by performing a variety of checks. Unicorn gathers the results of the popular HTML and CSS validators, as well as other useful services, such as Internationalization, RSS/Atom feeds and http headers.

LINK CHECKER

The W3C Link Checker looks for issues in links, anchors and referenced objects in a Web page, CSS style sheet, or recursively on a whole Web site. For best results, it is recommended to first ensure that the documents checked use Valid (X)HTML Markup and CSS.

12. Video encoding software

Handbrake (free, open source) or Super (free).

13. Video download helper

VideoDownloadHelper (for Firefox)

14. Creating subtitles

http://www.universalsubtitles.org, also known as http://www.amara.org.

HTML5 Sectioning Elements

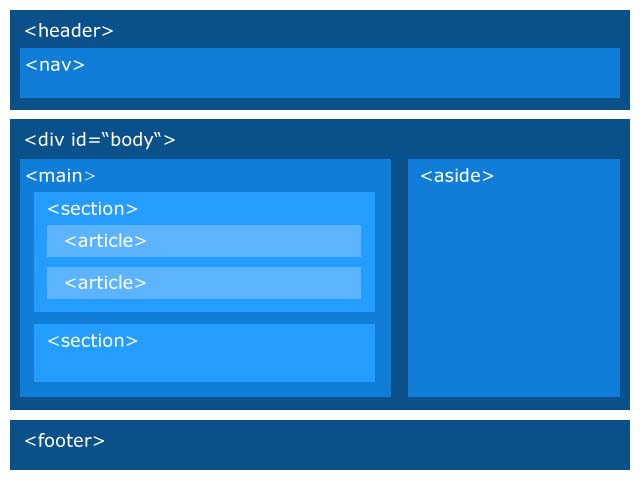

Some of the new structural elements introduced by HTML5: section, article, etc.

1. Use <H1>...<H6> for the headings as you have done before

2. Using headings and new sectioning elements

The <section>, <article>, <nav> and <aside> elements are called "sectioning elements". They cut a document into slices we call "sections".

The HTML5 specification says that "each sectioning element potentially has a heading and has also an outline associated".

<h1>...<h6> are called headings, and define the header of a section (whether explicitly marked up using sectioning content elements, or implied by the heading content itself).

3. The <header> element is just a container. It is not taken into account for defining new sections of a document nor does it affect the hierarchy levels.

HTML5 Best Practices

<!DOCTYPE html>
<html lang="en">
<head
<meta charset="utf-8">
<title>Page Title</title
<link rel="stylesheet" href="style.css">
<script src="script.js"></script>
</head>
<body
</body>
</html>

1. It is really a good practice to declare the character set of your document to protect against a serious security risk.

2. With HTML5, there is only one way to indicate the doctype, and it's so simple there is no reason to forget it.

3. The "TYPE" attribute is optional.

4. Always add a heading to explicit sectioning element.

Mainly for accessibility reasons, it's always better to include a heading (a <h1>, <h2>...<h6>) in each sectioning element (<section>, <article>, <nav>, <aside>), but also after the <body> element (called a "sectioning root").

Notice that <body> is also a sectioning element, it's called a "sectioning root", and would also need a heading.

Always use a heading element after a sectioning element, for example <section><Hx>...</Hx>...</section>, and after <body>, where x can be 1..6,
Or, use a <header> element, like in <section><header><Hx>...</Hx>.....</header>...</section>

5. TRY NOT TO RELY ON IMPLICIT SECTIONING, USE <SECTION>, <ARTICLE>, ETC. INSTEAD OF JUST <H1>...<H6>

6. BEST PRACTICE 1: In order to NOT display the heading content on screen the recommended technique is described in this article by Steve Faulkner, also see this older article by the same author. Do not use display:none or visibility:hidden in your CSS stylesheet, as in that case the heading content will never be vocalized by screen readers, and more generally by assistive technologies.

7. BEST PRACTICE 2: it is not advised to include interactive content (links, controls etc) that is hidden offscreen (it is in fact a violation of the W3C WCAG 2.0 Guidelines). All interactive content must have a visible focus indicator (and be on screen when focused).

8. Do not use autoplay and add preload="none" if you target mobile devices or if you have multiple audio/video on the same page.
